Single Way Blower Fresh Air Filtration Systems

Place of Origin : Beijing,China

Brand Name : Holtop

MOQ : 1pc

Price : Negotiable

Packaging Details : box

Delivery Time : Two weeks

Payment Terms : TT

Supply Ability : 200000 units per year

Model Number : DX1.5DCB4

Certification : CE

Model : DX1.5DCB4

Speed : 1-5

Airflow(m3/h) : 30-150

External Pressure (Pa) : 16-80

Input Power (W) : 41

Noise dB(A) : 23-32

Power supply : 220V/50Hz

Weight (Kg) : 9

Contact Now

The single-way fresh air filtration system supplies outdoor fresh air to room with high purification. It’s equipped with double filters with PM2.5 filtration rate over 95%.The airflow ranges from 150m3/h to 500m3/h for different applications.


Products Detail

1.The single-way fresh air filtration system supplies outdoor fresh air to room with high purification. It’s equipped with double filters with PM2.5 filtration rate over 95%.

2.The airflow ranges from 150m3/h to 500m3/h for different applications. It can be used to work together with Holtop energy recovery ventilator for better air purification either used independently for air purification in air conditioning system.

3.It has the optional functions of indoor circulation. In the situation when it’s not suitable to introduce outdoor fresh air, it can bypass the air in the room for indoor air purification only.



Different installation way for reference:

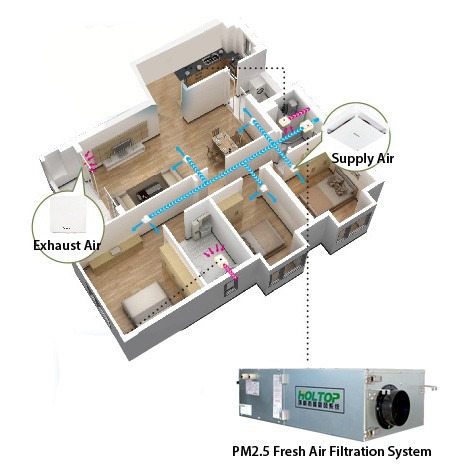

1)Single-way Fresh Air Filtration System Installation


Single Way Blower Fresh Air Filtration Systems

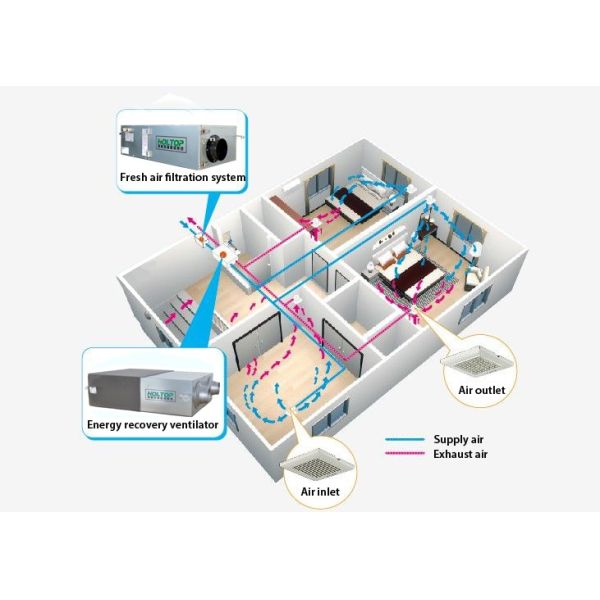

2)Single-way Fresh Air Filtration + Energy Recovery Ventilation System Installation

Single Way Blower Fresh Air Filtration SystemsSingle Way Blower Fresh Air Filtration SystemsSingle Way Blower Fresh Air Filtration Systems



Specification:

Model Speed Airflow(m3/h) External Pressure (Pa) Input Power (W) Noise dB(A) Power supply Weight (Kg)
DX1.5DCB4 5 150 80 41 32 220V/50Hz 9
4 120 64 29
3 90 48 27
2 60 32 25
1 30 16 23
DX2.5DCB4 5 250 100 60 34 220V/50Hz 9
4 200 80 31
3 150 60 29
2 100 40 27
1 50 20 25
DX3.5DCB4 5 350 120 114 37 220V/50Hz 9.5
4 280 96 33
3 210 72 31
2 140 48 29
1 70 24

27
